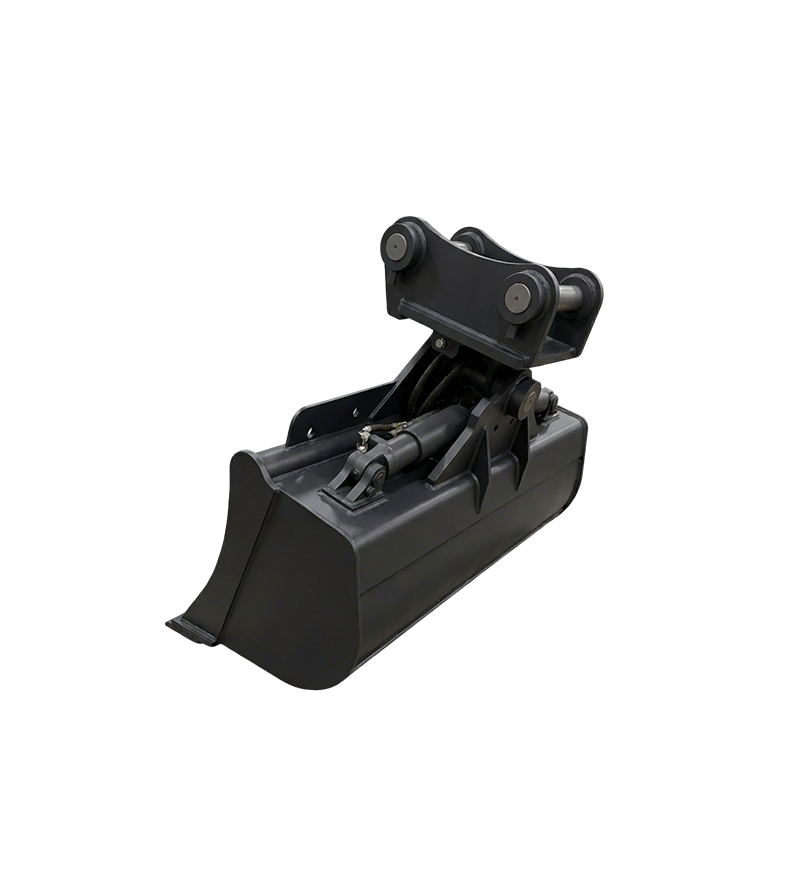

Excavator Hydraulic Tilt Bucket

Hydraulic Tilt Bucket

Excavator Attachment – Precision Grading & Tilting

Our excavator’s hydraulic tilting bucket utilizes electro-hydraulic proportional control technology, enabling precise tilting adjustments of 45° to the left and right. This allows for multi-angle, seamless operations without the need to adjust the excavator body. Whether it’s ditch excavation, slope trimming, river dredging, or site leveling, each task can be completed in one operation, eliminating the need for secondary manual adjustments, significantly improving work efficiency, and reducing labor and time costs. It covers various work scenarios including municipal engineering, water conservancy, and road construction.

Capacity
Width

1200-2500mm
Weight

800-2000kg

Get a Quote +86 19942051982

Factory Direct Price (Save 20%-30% Procurement Cost)
Full-Scenario Custom Solutions (3-Day Technical Drawing Delivery),
Trusted by 200+ Global Enterprises (Proven Reliability in 50+ Countries)

TECH spec

Specifications

Basic parameters

Parameter Item	5-30T Class Configuration	30-50T Class Configuration
Product Type	Excavator Hydraulic Tilting Bucket	Excavator Hydraulic Tilting Bucket
Effective Bucket Capacity	0.5-3 m³	3-5 m³
Suitable Tonnage	5-30 T	30-50 T
Tilt Angle	0-45° left/right	0-45° left/right
Core Material	Body: Q355/Q690 high-strength steel; Edge: NM450 wear-resistant steel	Body: Q355/Q690 high-strength steel; Edge: NM450 wear-resistant steel
Hydraulic System Pressure	25-30 MPa	30-35 MPa
Operation Method	Cab-mounted hydraulic control	Cab-mounted hydraulic control
Product Net Weight	0.5-2 t	2-4 t
Installation Time	1-2 hours	1-2 hours
Service Life	≥8000 operating hours	≥8000 operating hours
Quality Control Standards	ISO 9001 Certified (Material Testing, Tilt Accuracy Testing, Hydraulic System Seal Testing, Tensile Strength Testing, Fatigue Life Testing)	ISO 9001 Certified (Material Testing, Tilt Accuracy Testing, Hydraulic System Seal Testing, Tensile Strength Testing, Fatigue Life Testing)
Delivery Lead Time	15-20 days (Standard Models); 25-35 days (Custom Models)	20-25 days (Standard Models); 25-35 days (Custom Models)

Customized services

Customization Type	Specific Details
Basic Customization	Bucket capacity fine-tuning; external dimensions optimization; hydraulic interface adaptation; OEM manufacturing (custom corporate logo, drawing-based manufacturing)
Functional Upgrades	Angle display gauge (real-time tilt angle); hydraulic system pressure monitor; wear-resistant bucket teeth upgrade; anti-stick coating for bucket walls
Application-Specific	Widened cutting edge for slope grading; anti-stick bucket floor for river dredging; reinforced welds for high-frequency operation; hydraulic system optimization for low-temperature environments

Performance Highlights

Detailed Engineering Breakdown

High Wear Resistance
Heavy-Duty Structure
Customizable
Competitive Pricing

Increased efficiency by 50%+, reduced overall costs, and improved operational safety

Tilting adjustment easily reaches areas inaccessible by traditional buckets:such as riverbank slopes and ditch corners, ensuring thorough cleaning without residue and avoiding rework.

Stable hydraulic system: Equipped with domestic/imported hydraulic valve groups and seals, resistant to high pressure and high temperature. The hydraulic circuit has a built-in filter to remove impurities, preventing hydraulic leaks and jamming, adapting to complex outdoor working environments.

High safety: No need for frequent machine position adjustments, especially in slope and high-altitude operations, reducing the risk of tipping over due to machine rotation and movement, thus improving operational safety.

Manufacturing Excellence

Precision manufacturing processes ensure operational accuracy

Hydraulic components

Hydraulic valve groups and seals use domestic/imported brands, are resistant to high pressure and high temperature, and ensure long-term stable operation of the hydraulic system.

Corrosion and rust prevention

Triple protection of shot blasting, epoxy primer, and topcoat ensures no significant rust for 3 years in humid, dusty, and water-related operating environments, reducing maintenance frequency.

application

Application areas

Municipal Trench Excavation
Highway & Railway Slope Trimming
River & Reservoir Dredging
Port & Terminal Loading
Agricultural Water Conservancy

Municipal Trench Excavation

Precisely adjust trench wall slope, one-time forming without trimming, improve efficiency and save time.
- One Pass Forming
- High Efficiency
Highway & Railway Slope Trimming

Accurately fit design requirements, smooth surface, suitable for high and steep slopes.
- Smooth Surface
- Precise Fit
River & Reservoir Dredging

Reach slope corners for thorough dredging, less machine adjustment and water disturbance.
- Thorough Cleaning
- Stable Operation
Port & Terminal Loading

Tilt bucket discharges quickly and cleanly, suitable for bulk materials, reduce waste.
- Clean Discharge
- Material Saving
Agricultural Water Conservancy

Excavate irrigation channels accurately, ensure smooth water flow, easy to operate.
- Standard Channel
- Easy Operation

FAQS

Frequently asked questions

Have questions about our excavator buckets, custom solutions, or services? Our FAQ section provides quick answers to common inquiries. If you don’t find what you're looking for, feel free to contact us — we’re here to help!

Get Help After-sales

Do You Offer Standard Products or Only Custom Solutions?

We start from standard designs — but we never stop there. Every bucket can be adjusted based on machine model, working conditions, and wear expectations, ensuring it actually fits how you work, not just what’s on paper.

What Information Do You Need Before Making a Bucket?

You don’t need drawings or technical documents. Just tell us your excavator model, material type, and job conditions. Our engineers translate real-world use into a practical, buildable solution.

How Do You Ensure Quality and Durability?

Quality is controlled before, during, and after production — not just at delivery. From material selection to welding, machining, and final inspection, every step follows a proven process built for heavy-duty applications.

Can Your Buckets Fit Different Excavator Brands?

Yes. We build buckets compatible with all major excavator brands and models, and ensure proper pin alignment and structural balance for smooth installation and long service life.
