Excavator Cleaning Bucket

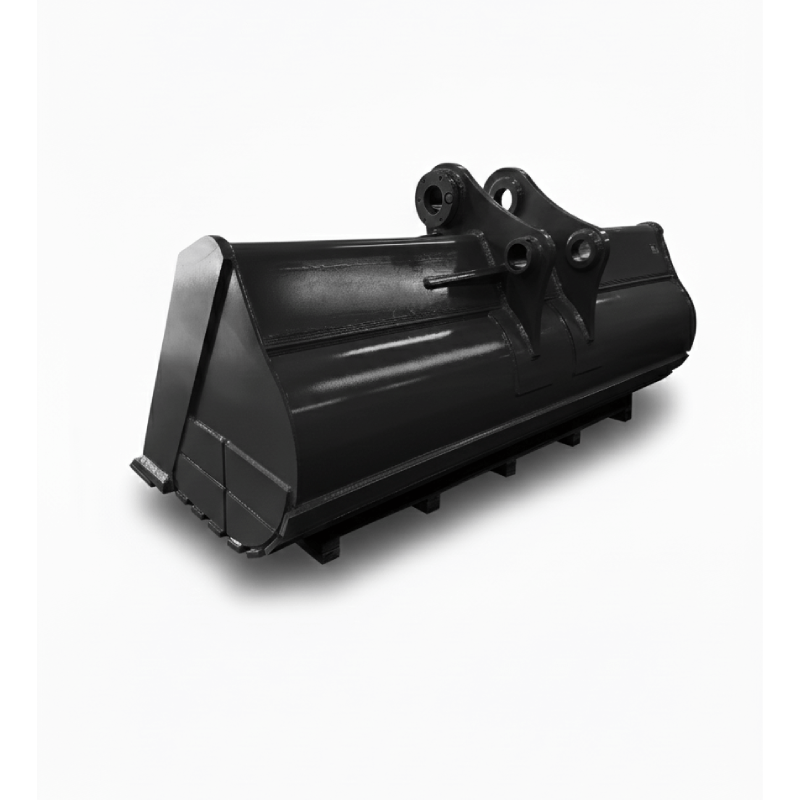

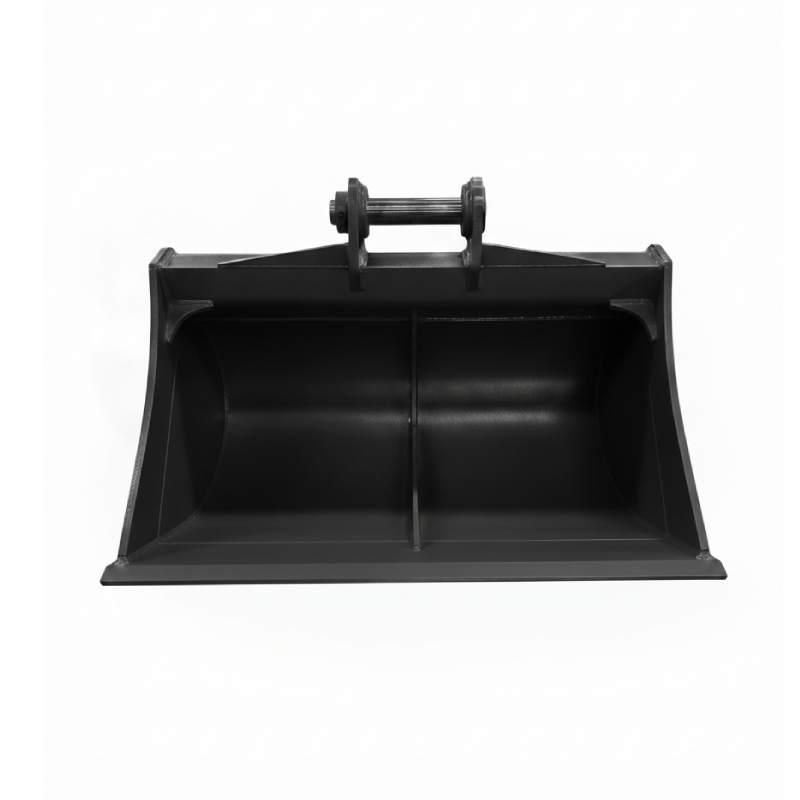

Cleanup Excavator Bucket

For 5–50 Ton Excavators – Trenching & Finishing

The 5-50T Class Cleaner Bucket is specifically engineered to address pain points in cleaning operations. Featuring a unique “flat bucket floor + soft protective edge” structure, it adapts to diverse cleaning scenarios. During operation, it ensures thorough material removal without residue while preventing scratches on delicate surfaces like concrete pavements, tile floors, and pool bottom waterproofing layers—eliminating the need for secondary repairs. Additionally, its compatibility with multiple cleaning scenarios eliminates frequent attachment changes, significantly boosting cleaning efficiency.

  • Capacity

  • Width

    600-3500mm

  • Weight

    80-2500kg

Get a Quote +86 19942051982
  • Factory Direct Price (Save 20%-30% Procurement Cost)
  • Full-Scenario Custom Solutions (3-Day Technical Drawing Delivery),
  • Trusted by 200+ Global Enterprises (Proven Reliability in 50+ Countries)
TECH spec

Specifications

Basic parameters
Parameter Item 5-20T Class Configuration 20-50T Class Configuration
Product Type 5-20T Class Cleaner Bucket 20-50T Class Cleaner Bucket
Effective Bucket Capacity 0.3-2 m³ 2-5 m³
Product Net Weight 0.4-1.8 t 1.8-3.5 t
Core Material Body: Q355 high-strength steel; Protective edges: High-wear-resistant rubber / polyurethane Body: Q355 high-strength steel; Protective edges: High-wear-resistant rubber / polyurethane
Protective Layer Thickness 20 mm (rubber) / 15 mm (polyurethane) 25 mm (rubber) / 20 mm (polyurethane)
Overall Dimensions (L×W×H) 500×1400×900 mm - 2500×2200×1500 mm 1500×2200×1500 mm - 3500×2800×1800 mm
Quality Control Standards ISO 9001 Certified (Material Testing, Full Dimensional Inspection, Weld Flaw Detection, Protective Coating Wear Resistance Testing, Residue Removal Testing) ISO 9001 Certified (Material Testing, Full Dimensional Inspection, Weld Flaw Detection, Protective Coating Wear Resistance Testing, Residue Removal Testing)
Delivery Lead Time 7-15 days (Standard Models); 12-20 days (Custom Models) 7-15 days (Standard Models); 12-20 days (Custom Models)
Customized services
Performance Highlights

Detailed Engineering Breakdown

  • High Wear Resistance
  • Heavy-Duty Structure
  • Customizable
  • Competitive Pricing

  • Multi-scenario adaptability eliminates the need for frequent attachment changes

    Comprehensive Scenario Coverage: Optimized bucket design and protective features enable simultaneous handling of sweeping, dredging, and cleaning tasks. For instance, sweep municipal roads in the morning and clean landscape ponds in the afternoon without changing attachments, boosting equipment utilization.
    Optional Auxiliary Functions: Customize with side panels (prevent material spillage) or sweeping brushes (enhance road cleaning effectiveness) to adapt to more complex cleaning scenarios.

Manufacturing Excellence

Professional Craftsmanship Ensures Cleaning Effectiveness and Stability

Flattened and Widened Bucket Bottom Design

Utilizing high-precision CNC machining, the bucket bottom maintains a flatness tolerance of ≤2mm, ensuring tight contact with the working surface for efficient removal of fine sand, silt, debris, and other materials.

Anti-Adhesion Treatment on Bucket Walls

Internal walls are coated with an anti-adhesion layer to reduce silt and wet material buildup, enhancing unloading efficiency.

CNC precision machining

The bucket floor undergoes CNC milling with a flatness tolerance of ≤2mm, ensuring tight contact with the working surface and improving thoroughness of cleanup.

application

Application areas

  • Municipal Cleaning

  • Water Conservancy Cleaning

  • Workshop & Site Cleaning

  • Aquaculture & Farm Cleaning

  • Municipal Cleaning

    Sweep waste on roads and squares, soft edge protects pavement, clean and no rework.

    • Ground Protection

    • Thorough Cleaning

  • Water Conservancy Cleaning

    Dredge rivers and ponds, flat bottom cleans thoroughly, protects waterproof layer.

    • Thorough Dredging
    • Layer Protection

  • Workshop & Site Cleaning

    Clean dust and debris, low dust, no damage to floors, keep tidy environment.

    • Low Dust
    • Safe Operation

  • Aquaculture & Farm Cleaning

    Clean manure and ditches, anti-stick design, easy discharge, reduce odor.

    • Anti-Stick
    • High Efficiency
FAQS

Frequently asked questions

Have questions about our excavator buckets, custom solutions, or services? Our FAQ section provides quick answers to common inquiries. If you don’t find what you're looking for, feel free to contact us — we’re here to help!

Get Help After-sales
Is the protective edge of the cleaning bucket wear-resistant? Is it difficult to replace?
Wear-resistant and easy to replace! The protective edge uses high-wear-resistant industrial rubber or polyurethane material, with a wear life of over 2000 operating hours. Featuring a modular design, replacement after wear only requires removing bolts—no specialized tools needed. One person can handle it, keeping maintenance costs low.
In scenarios with heavy sludge, will material stick to the bucket walls?
No! Our cleaning bucket features an anti-adhesion coating on the inner walls, effectively reducing sludge and wet material buildup. Additionally, the bucket cavity's streamlined design ensures smooth material flow during unloading, leaving no residue and eliminating the need for manual cleaning.
My excavator is a niche brand. Can you ensure precise compatibility?
Absolutely! Whether mainstream or niche brands, simply provide your excavator's brand, model, and serial number. Our engineers will conduct one-on-one verification of core installation dimensions—such as pin diameter and bucket ear spacing—to customize a 100% compatible cleaning bucket. Installation requires no excavator modifications.
Can I place a trial order for one unit first, then bulk purchase after verifying effectiveness?
Supported! We accept trial orders starting from just one unit. Trial customers receive the same comprehensive customization, quality inspection, and after-sales service, allowing you to validate product performance at minimal cost. Proceed with bulk orders only after satisfaction, ensuring controlled risk.
