4 in 1 Bucket

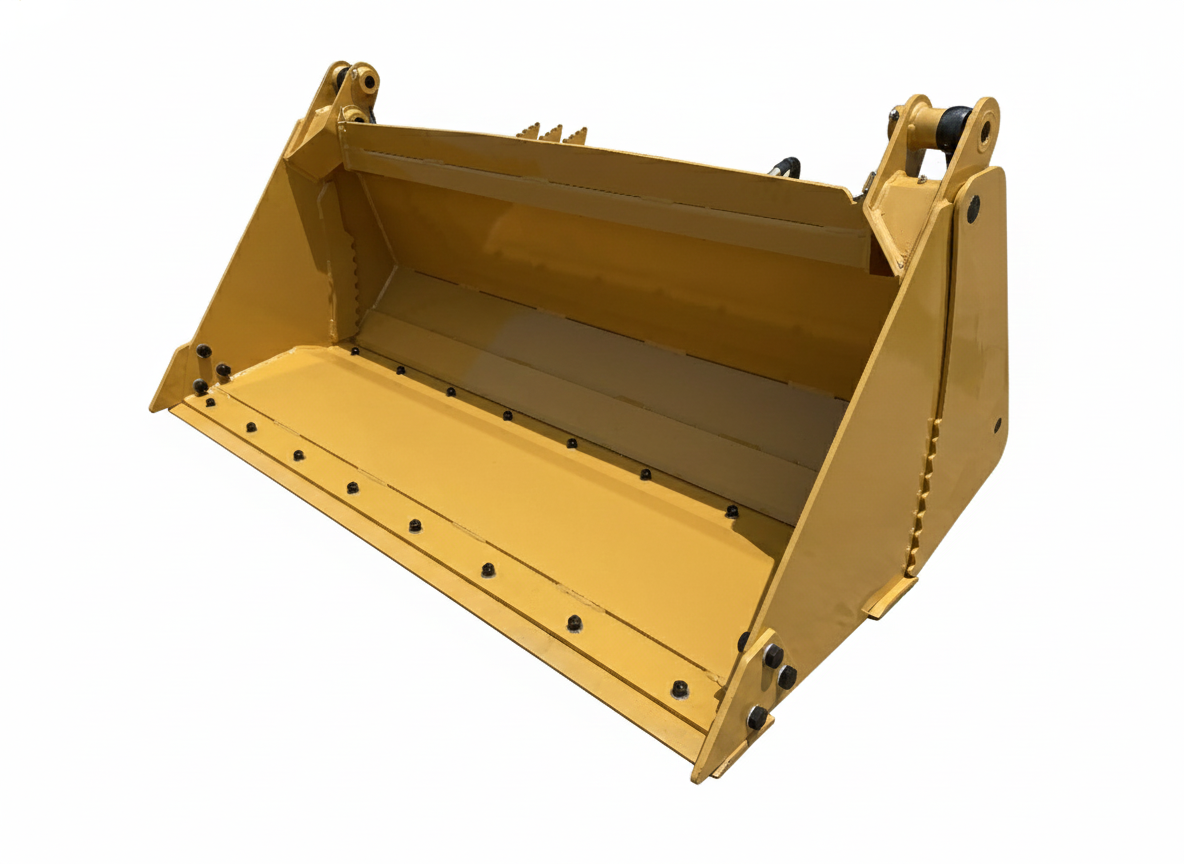

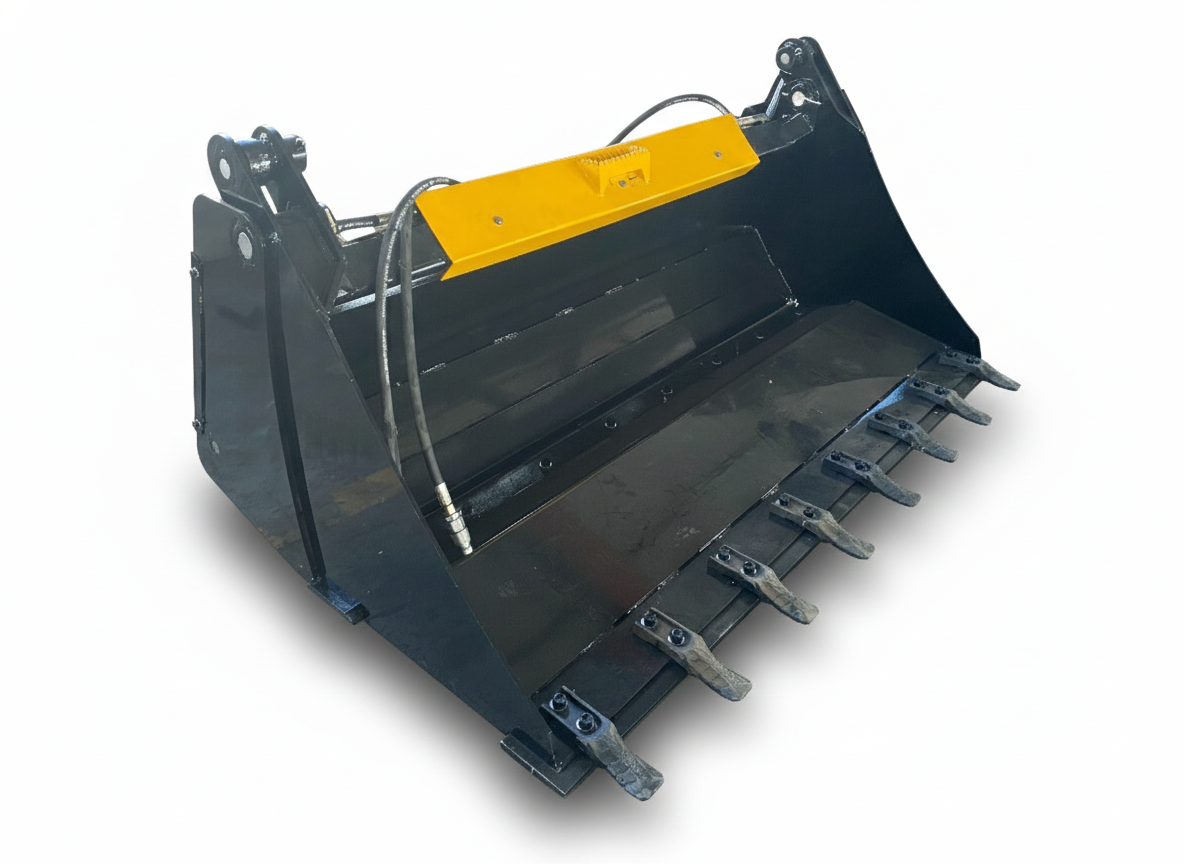

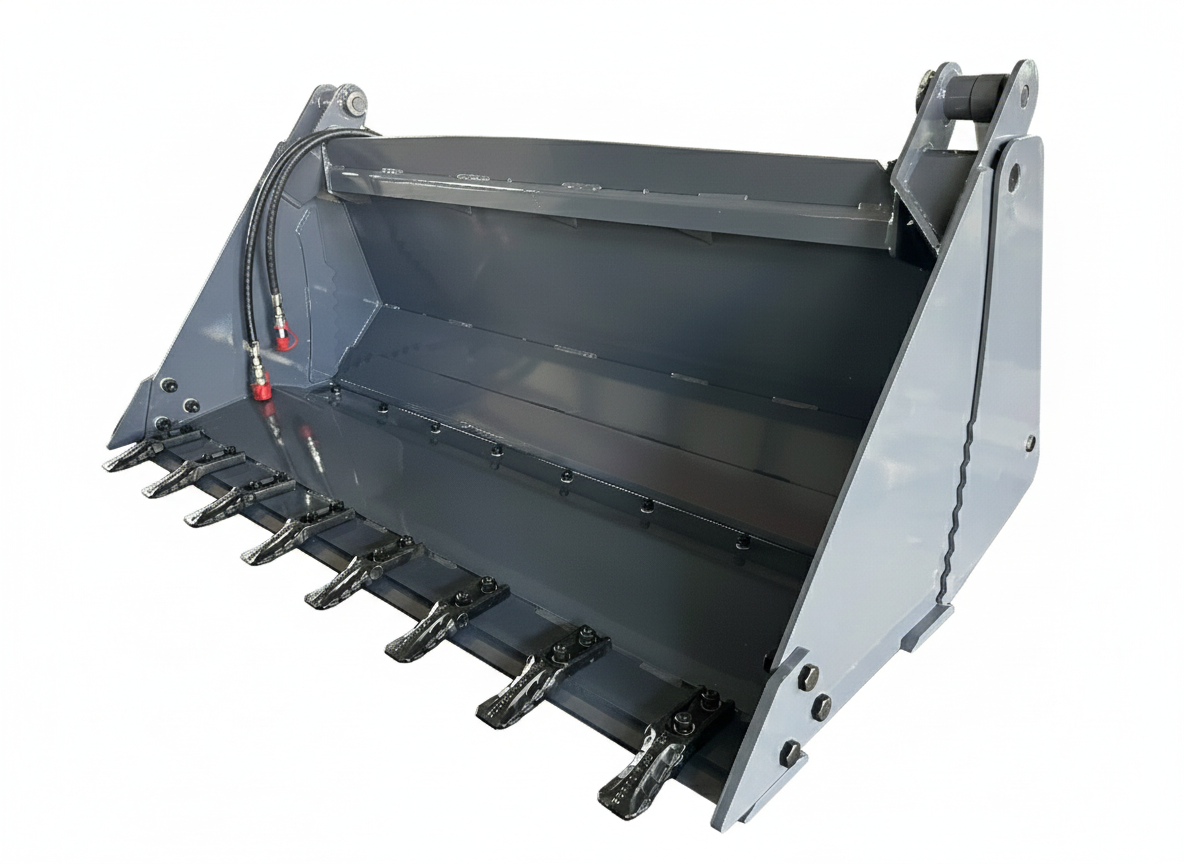

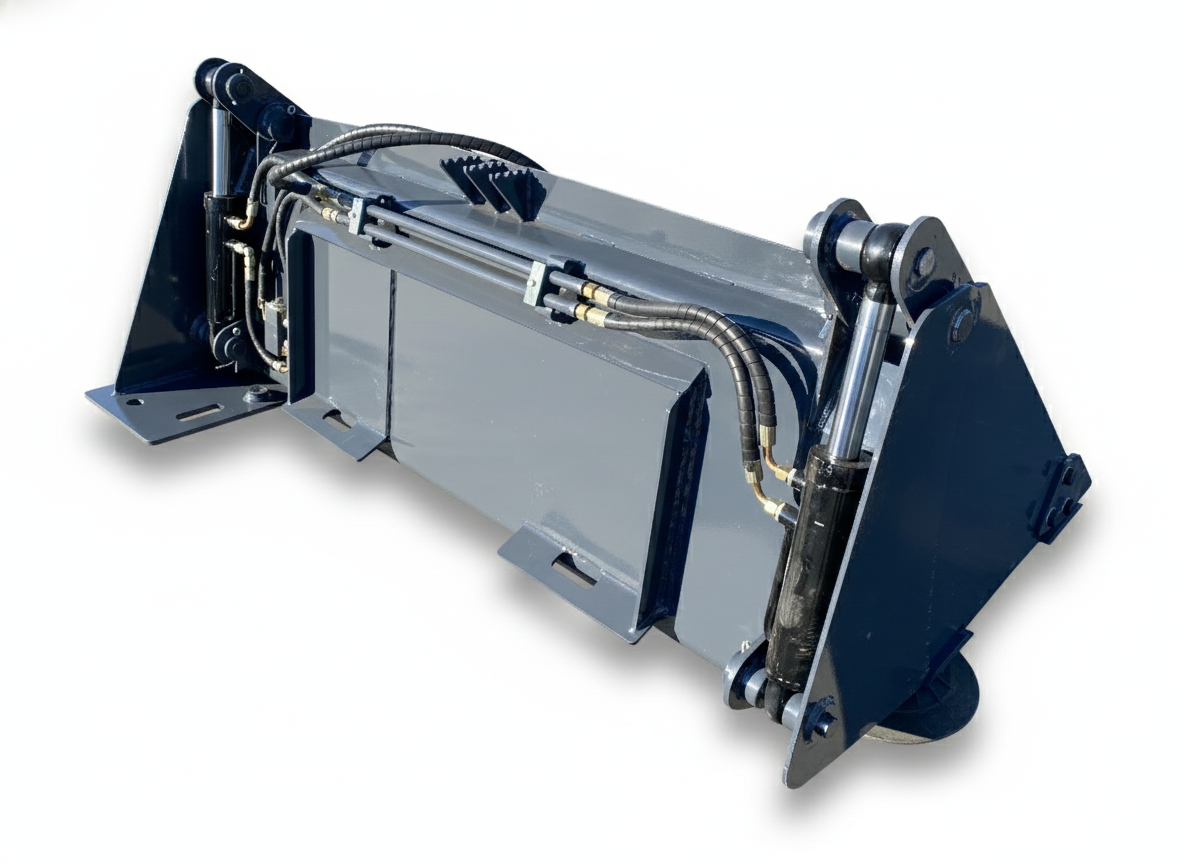

4-in-1 Skid Steer Bucket

Multi-Function – Construction & Load Handling
The excavator 4-in-1 bucket is a highly efficient attachment that integrates four functions: digging, shoveling, clamping, and crushing. It is compatible with excavators from 5 to 50 tons from all brands. Utilizing a high-strength integrated structure and precise hydraulic control, it allows for rapid switching between various operational needs, including sand and gravel digging, material shoveling, pipe clamping, and small-scale crushing. It eliminates the need for frequent attachment changes, replaces 3-4 different types of equipment, increases single-project work efficiency by 40%, significantly reduces equipment procurement and switching costs, and is suitable for various scenarios such as municipal construction, farmland renovation, and small-scale demolition.

Capacity

0.4-0.54m³
Width

1567-2167mm
Weight

480-600kg

Get a Quote +86 19942051982

Factory Direct Price (Save 20%-30% Procurement Cost)
Full-Scenario Custom Solutions (3-Day Technical Drawing Delivery),
Trusted by 200+ Global Enterprises (Proven Reliability in 50+ Countries)

TECH spec

Specifications

Basic parameters

	60"	66"	72"	84"
Total Length A (mm)	990	990	990	990
Total Width B (mm)	1567	1717	1867	2167
Total Height C (mm)	820	820	820	820
Total Weight (kg)	480	510	540	600
Storage Capacity (m³)	0.4	0.44	0.48	0.54
Opening Distance (mm)	718	718	718	718
Clamping Force (N)	8390	8390	8390	8390
System Pressure (Mpa)	16-20	16-20	16-20	16-20
Blade Thickness (mm)	16	16	16	16

Performance Highlights

Detailed Engineering Breakdown

High Wear Resistance
Heavy-Duty Structure
Customizable
Competitive Pricing

Four-in-one functionality significantly reduces equipment costs

• Integrates four core functions—digging, loading, clamping, and crushing—replacing traditional buckets, shovels, mini grapples, and breakers. Directly reduces equipment procurement costs by 50%-60% without requiring additional investments in multiple units.
• A single machine fulfills multi-process requirements, minimizing equipment clutter on-site and enhancing space utilization efficiency.
• Compatible with 5-50 ton excavators across all brands, covering 5-ton models for small municipal projects to 50-ton models for large infrastructure, accommodating diverse job scales.

Manufacturing Excellence

Heavy-duty stability for complex operating environments

High-Strength & Wear-Resistant Bucket

Bucket body forged from Q355/Q460/Q690 high-strength steel; bucket teeth made from precision-cast alloy steel with hardened HRC50-55, delivering 2.5 times the wear resistance of standard buckets to withstand high-frequency impacts from hard materials like sand, gravel, and concrete.

Triple Anti-Corrosion Surface Treatment

Triple anti-corrosion treatment: shot blasting for rust removal + epoxy primer + topcoat. No significant rusting after 3 years of outdoor operation, reducing maintenance frequency.

Fully Customizable Compatibility

Customizable production: precisely matches bucket capacity, opening dimensions, and other parameters based on excavator specifications and operational requirements, ensuring 100% compatibility.

application

Application areas

Municipal Construction
Farmland Transformation
Small-Scale Demolition
Landscaping
Mining Auxiliary
Port/Dock

Municipal Construction

The road expansion project involves multiple processes such as earthwork excavation, construction waste removal, pipe clamping and installation, and sidewalk demolition and renovation, which can be carried out in a coordinated manner without the need for frequent tool changes.
Farmland Transformation

It can be used for farmland excavation and leveling, irrigation ditch digging, and straw/farm tool clamping and transportation, adapting to complex field terrain and improving the efficiency of agricultural transformation.
Small-Scale Demolition

One machine can complete the entire process of crushing and cleaning old house walls, demolition waste cleaning and transportation, reducing equipment investment.
Landscaping

It can be used for tree planting pit excavation, seedling/stone clamping and transportation, and weed clearing, making it versatile and adaptable to all aspects of greening construction.
Mining Auxiliary

It is suitable for surface soil excavation, small-scale ore shoveling and sorting, and is applicable to mine preparation and post-cleaning operations.
Port/Dock

Improve port efficiency for short-distance transshipment by shoveling bulk cargo (sand, gravel, grain) and assisting in the handling of small containers.

FAQS

Frequently asked questions

Have questions about our excavator buckets, custom solutions, or services? Our FAQ section provides quick answers to common inquiries. If you don’t find what you're looking for, feel free to contact us — we’re here to help!

Get Help After-sales

Do You Offer Standard Products or Only Custom Solutions?

We start from standard designs — but we never stop there.
Every bucket can be adjusted based on machine model, working conditions, and wear expectations, ensuring it actually fits how you work, not just what’s on paper.

What Information Do You Need Before Making a Bucket?

You don’t need drawings or technical documents. Just tell us your excavator model, material type, and job conditions. Our engineers translate real-world use into a practical, buildable solution.

How Do You Ensure Quality and Durability?

Quality is controlled before, during, and after production — not just at delivery. From material selection to welding, machining, and final inspection, every step follows a proven process built for heavy-duty applications.

Can Your Buckets Fit Different Excavator Brands?

Yes. We build buckets compatible with all major excavator brands and models, and ensure proper pin alignment and structural balance for smooth installation and long service life.
